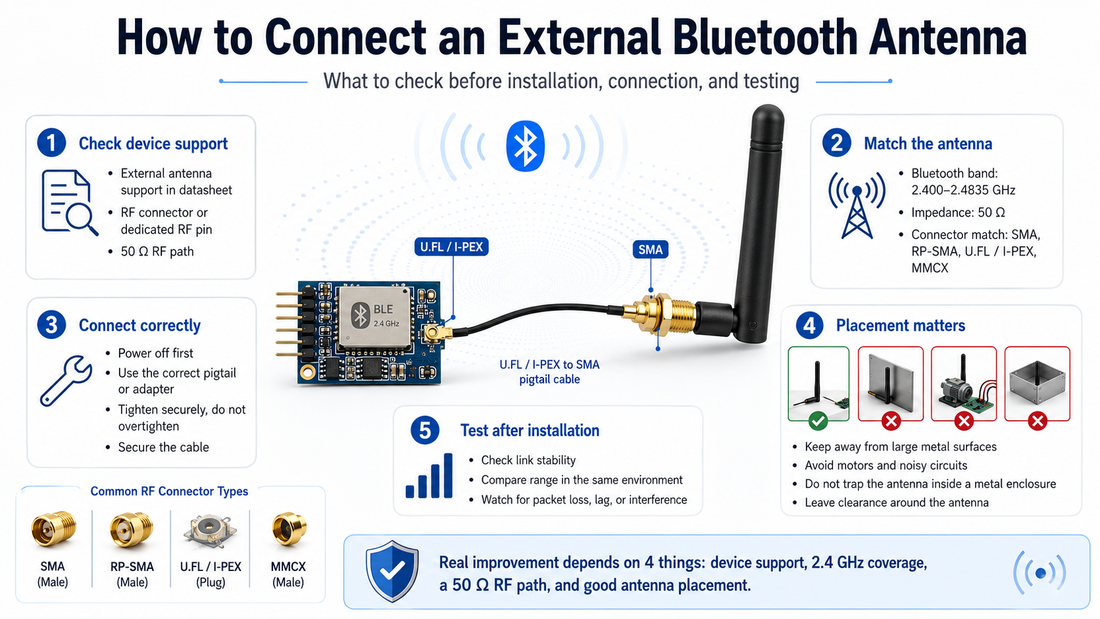

How to Connect an External Bluetooth Antenna: A Practical Guide from Selection to Testing

A lot of people assume that adding an external Bluetooth antenna is simple.
Just plug it in and the signal gets better.

In real projects, it does not work that way.
If the connector is wrong, the frequency coverage is wrong, or the antenna location is poor, performance can get worse instead of better. In some modules, an external antenna also requires a dedicated RF output path rather than a casual hardware modification.

This guide explains the process in a clear and practical way: how to connect an external Bluetooth antenna, what to check before installation, and how to test it after setup.

1. First, make sure your device actually supports an external antenna

This is the first step, and it is also the one people skip most often.
Not every Bluetooth device is designed for an external antenna.

Some modules come with an onboard antenna only.
Others provide a dedicated 50-ohm RF pin or RF connector for an external antenna.
If your hardware was designed around an onboard antenna and does not include the proper RF path, matching network, or connector footprint, switching to an external antenna is usually not a simple plug-and-play change.

Check these points first:

  • Does the datasheet mention external antenna support?
  • Does the board include an RF connector such as SMA, U.FL / I-PEX, or MMCX?
  • Is the RF path specified as 50 Ω?
  • Does the manufacturer require a specific reference layout or RF trace structure?

If that information is missing, the safest move is to check the datasheet or schematic before connecting anything.

2. What an external Bluetooth antenna must match

Bluetooth uses the 2.4 GHz ISM band, commonly described as 2.400 to 2.4835 GHz.

That means your antenna should meet three basic requirements.

Frequency match

The antenna must support the 2.4 GHz Bluetooth band.
A 5 GHz-only Wi-Fi antenna is not a proper replacement for Bluetooth. A dual-band 2.4/5 GHz antenna may work, but only if it genuinely covers 2.4 GHz.

Impedance match

Most Bluetooth RF paths are designed around 50 ohms.
If the antenna, cable, connector, or adapter is not handled as a 50-ohm RF path, reflection and loss can increase, and link quality can drop.

Connector match

Common connector types include:

  • SMA
  • RP-SMA
  • U.FL / I-PEX
  • MMCX

Do not force a mismatch.
Use the correct adapter or pigtail cable, and verify the male/female connector type before installation.

3. How to connect an external Bluetooth antenna

Here is the practical workflow.

Step 1: Power the device off

Turn the device off before connecting the antenna.
This reduces the chance of accidental damage and avoids handling the RF connection while the system is active.

Step 2: Identify the RF connector

Check what connector your board actually uses.
SMA is threaded.
U.FL / I-PEX is a very small snap-on connector.
MMCX is also a snap-style RF connector, but it is larger and different in structure.

Step 3: Connect the antenna or pigtail

  • If the device already has an SMA connector, connect the matching antenna directly
  • If the board uses U.FL / I-PEX, you will usually need a U.FL-to-SMA pigtail before attaching the external antenna
  • If the module exposes an RF pad or dedicated RF pin, the connection should follow the manufacturer’s reference layout and 50-ohm RF routing guidance instead of an improvised wire connection

This matters because external antenna support is not just about “adding a connector.” It also depends on proper 50-ohm RF routing and layout discipline.

Step 4: Tighten the connector properly

For SMA-style connectors, tighten firmly but do not overtighten.
Too much force can damage the threads. Too little force can create an unstable connection.

Step 5: Secure the cable and antenna position

Do not leave the pigtail hanging loose.
Repeated pulling or vibration can weaken small RF connectors, especially U.FL / I-PEX types.

4. Antenna placement matters as much as the connection itself

Many users connect the antenna correctly and still see disappointing performance.
In many cases, the issue is not the connector. It is the location.

In 2.4 GHz systems, nearby metal housings, shielding cans, batteries, motors, power sections, and dense wiring can all affect antenna radiation. Hardware design guidance for Bluetooth and other 2.4 GHz systems commonly stresses antenna clearance and a controlled 50-ohm RF path.

Good placement usually means:

  • Keep the antenna away from large metal surfaces
  • Avoid mounting it right next to motors, transformers, or noisy circuits
  • Place it where it is not trapped inside a metal enclosure
  • Leave enough clearance around the antenna

In simple terms, the benefit of an external antenna is not only that it is outside the board.
It is that it can be moved to a better radiating position.

5. How to test the antenna after installation

After connection, do not rely on guesswork alone.
Run a few basic checks.

Link stability test

Keep the Bluetooth connection active and watch for disconnects, reconnections, or pairing issues.

Range test

Compare before and after performance in the same environment.
Bluetooth range depends on more than the antenna. It also depends on transmit power, receiver sensitivity, interference, and physical obstacles. Bluetooth SIG notes that reliable Bluetooth range can vary widely depending on the system and use case.

Throughput and interference check

If your device sends continuous data, such as audio, sensor data, or control signals, pay attention to packet loss, lag, and stability, not just whether the connection exists.

6. Common problems and quick checks

No signal after connection

Check these first:

  • Does the antenna actually support 2.4 GHz?
  • Is the connector type correct?
  • Does the module really support an external antenna?

Signal is worse than before

This often comes from one of these issues:

  • Poor antenna placement
  • A long or low-quality pigtail cable
  • Heavy nearby metal obstruction
  • An RF path that was not designed as a proper 50-ohm external antenna path

The connector keeps coming loose

Small connectors like U.FL / I-PEX are delicate by nature.
They are best used for short internal RF connections, with proper strain relief if the signal is routed to an external antenna.

7. The practical takeaway

An external Bluetooth antenna is not a magic upgrade.
Real improvement usually depends on four things working together:

  1. The device supports an external antenna
  2. The antenna covers the 2.4 GHz Bluetooth band
  3. The RF path is treated as a 50-ohm system
  4. The antenna is installed in a good physical location

When those four conditions are in place, an external antenna has a much better chance of improving connection stability, coverage, and real-world wireless performance.

Final Thoughts

If you are choosing an external antenna for a Bluetooth module, gateway, industrial terminal, or smart device, do not focus only on the connector.
Look at the frequency range, impedance, cable structure, and installation environment as well.

At BOOBRIE, we care about more than whether an antenna can be connected.
We care about whether it works reliably, consistently, and appropriately for the actual device design.
