If you have noticed that both WiFi and Bluetooth mention 2.4GHz, you may wonder whether their antennas can be used interchangeably. In many cases the answer is yes - but only under the right conditions. This guide explains when sharing an antenna makes sense, what technical factors matter, and how to make reliable decisions in real projects.
1) Meaningful Quick Answer
A WiFi antenna can often work for Bluetooth when:
-
The antenna supports the 2.4GHz band (2400-2500MHz is ideal)
-
It has sufficient bandwidth (not extremely narrow-band)
-
Your RF system is designed for 50-ohm impedance (common for WiFi/Bluetooth devices)
Swapping is usually a bad idea when:
-
The WiFi antenna is 5GHz-only or 6GHz-only (WiFi 6E)
-
You need high WiFi throughput, long-range stability, or MIMO capability
2) Why WiFi and Bluetooth Antennas Get Confused
Both technologies can operate in the 2.4GHz ISM spectrum, so they overlap in frequency. However, frequency overlap does not guarantee the same performance. Antenna efficiency, tuning, placement, and connector losses still matter.

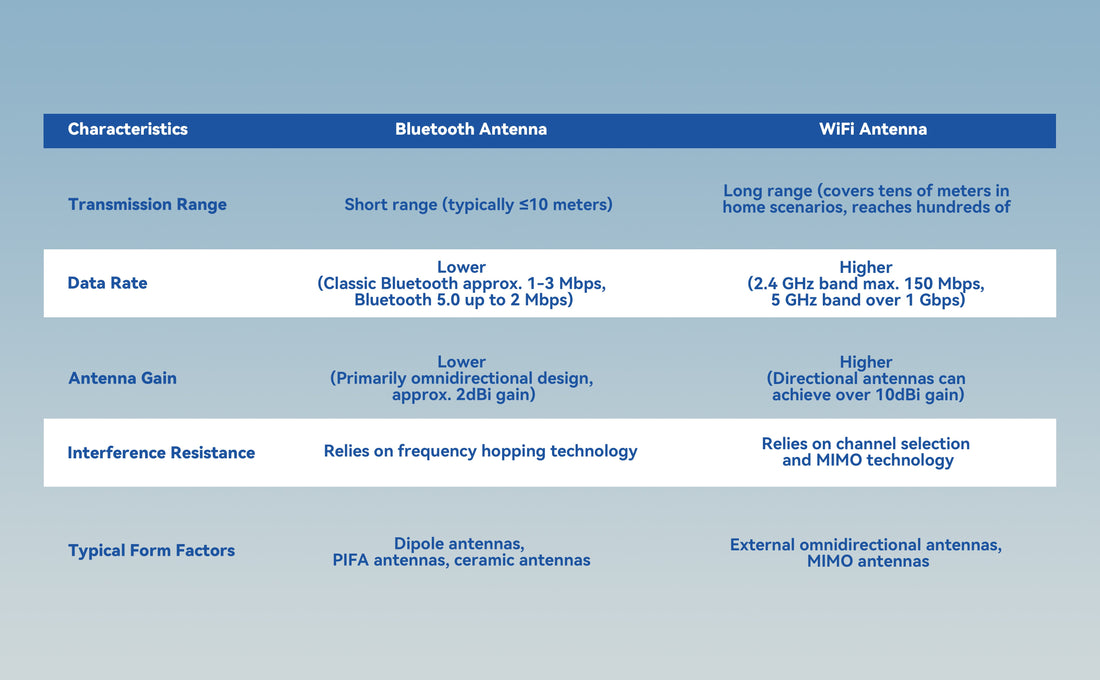

3) Design Differences
4) The 5 Technical Factors That Decide Compatibility
-
Center frequency and bandwidth: A 2.4GHz antenna may still be optimized for a specific slice of the band.
-
Impedance: Most WiFi/Bluetooth antennas and RF ports are designed around 50 ohm.
-
Device-dependent tuning: PCB layout, ground plane size, and enclosure materials can shift matching.
-
Polarization and radiation pattern: Coverage needs differ between WiFi (coverage + throughput) and Bluetooth (short-range links).
-
Connector type and cable loss: Adapters and long coax runs can reduce performance noticeably.
5) When One Antenna Can Serve Both WiFi + Bluetooth
Common successful scenarios:
-
Smart home hubs and IoT gateways
-
Embedded modules and industrial controllers
-
Mini PCs and compact devices where space is limited
Recommended choice: a wideband 2.4GHz antenna (roughly 2.4-2.5GHz), designed for 50-ohm systems.
6) When You Should Not Swap Antennas
-
Your WiFi link is mainly 5GHz/6GHz (Bluetooth cannot use those bands)
-
You rely on MIMO or require maximum throughput and stability
-
The device is certified or tuned for a specific antenna design
7) Buyer Checklist (No RF Tools Needed)
-
Frequency range: look for 2400-2500MHz or 2.4-2.5GHz
-
Impedance: 50 ohm
-
Connector type: SMA / RP-SMA / I-PEX (U.FL) etc.
-
Form factor: internal vs. external; stick/panel/magnetic base
-
Placement: keep away from large metal obstructions when possible
8) Real-World Scenarios
Scenario A: My Bluetooth range is weak
-
Try a 2.4GHz external antenna and place it in a clearer location away from metal shielding.
Scenario B: My device supports both WiFi + BLE
-
A shared 2.4GHz antenna often works well, but consider a dual-band solution if you heavily use 5GHz WiFi.
Scenario C: I replaced a WiFi antenna and Bluetooth got worse
-
The replacement may be optimized for 5GHz, or matching may have changed due to housing/ground differences.
9) Bottom Line
WiFi and Bluetooth antennas are interchangeable mainly when the target is the 2.4GHz band. For the safest one-antenna-for-both choice, use a wideband 2.4GHz antenna, 50-ohm impedance, and the correct connector for your device.
FAQ
-
Can I use a 5GHz WiFi antenna for Bluetooth? No. Bluetooth operates only at 2.4GHz.
-
Can I use a Bluetooth antenna for 2.4GHz WiFi? Sometimes, but performance may be narrower or less efficient.
-
Why do some antennas claim WiFi/Bluetooth/Zigbee support? These protocols share the 2.4GHz ISM band, so wideband antennas can cover all of them.
