A practical, engineering-focused guide to modulation, framing, receiver noise, antennas, testing, and regional compliance

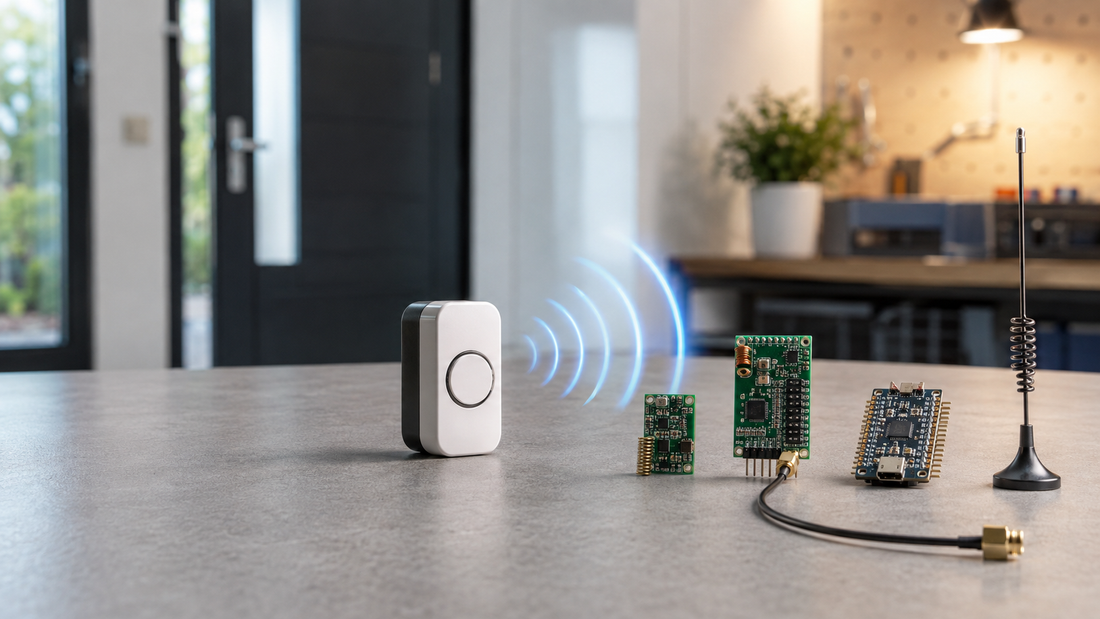

A 433 MHz ASK/OOK doorbell link represented with generic transmitter, receiver, controller, coaxial pigtail, and antenna hardware

Technical Information | September 2026 | BOOBRIE

Why a Wireless Doorbell Is a Useful RF Lesson

A wireless doorbell looks simple: press a button outside and a chime sounds inside. Yet that short event contains almost every building block of a small radio system. A switch creates a command, an encoder turns it into a timed bit pattern, a transmitter places that pattern onto a 433 MHz carrier, and a receiver reconstructs the data before the controller decides whether the message is valid.

That makes the doorbell a practical way to understand ASK and OOK without burying the reader in equations. It also reveals why a bench prototype can work from one side of a desk but become unreliable after it is installed near a metal doorframe, a power supply, or noisy electronics.

Key takeaway: The key idea: range is not a property of the radio module alone. It is the result of the full link—modulation, packet timing, receiver behavior, antenna efficiency, orientation, enclosure, interference, and firmware validation.

ASK and OOK in Plain English

Amplitude-shift keying, or ASK, represents digital information by changing the amplitude of a radio carrier. A larger carrier amplitude can represent one binary state and a smaller amplitude can represent the other. On-off keying, or OOK, is the simplest ASK form: the carrier is present for one state and absent for the other.

Think of OOK as tapping out a rhythm with radio energy. The timing of the bursts carries the message. The receiver first detects the changing envelope, then a data slicer compares that detected level with a threshold and converts it into digital highs and lows. Those transitions are what the decoder measures.

OOK works well for brief control messages because the transmitter only needs to switch the carrier. The tradeoff is that amplitude noise, nearby signals, supply ripple, and an unstable decision threshold can disturb the recovered pulse train. Good packet structure and careful receiver design therefore matter as much as the carrier itself.

Figure 1. ASK uses two amplitude levels; OOK is the special case in which the carrier is switched on and off

What Happens After You Press the Button

A robust doorbell does not transmit one naked bit. It sends a short frame, normally several times, so that the receiver has repeated opportunities to capture a complete message. The exact protocol varies by product, but the functional blocks are usually similar.

1. Debounce the switch: A mechanical button can bounce between open and closed for several milliseconds. Firmware waits for a stable press before creating a command.
2. Build the frame: The controller assembles a preamble, a synchronization pattern, a device address or identifier, a command, and an integrity check.
3. Key the carrier: The data output drives the ASK/OOK transmitter. Pulse widths or symbol timing encode the binary message.
4. Repeat with controlled spacing: Repeating a frame improves the chance of reception, while a short gap gives the receiver and decoder a clear boundary.
5. Detect and slice: The receiver converts RF amplitude into a baseband signal, filters it, and compares it with a changing or fixed threshold.
6. Validate before acting: The decoder checks timing, address, command, and integrity. Only a valid frame triggers the chime output.

Figure 2. The complete path from a doorbell button to a validated command and chime action

A Practical Bench Build

For a learning setup, use a matched 433.92 MHz ASK/OOK transmitter and receiver pair, two microcontroller boards, a momentary pushbutton, an indicator or low-voltage sounder, local bypass capacitors, and suitable antennas. Confirm every module's supply voltage, logic level, pinout, and allowable data rate from its own documentation; boards that look similar are not always electrically interchangeable.

On the transmitter side, connect the button to a digital input with a defined pull-up or pull-down state. Feed a controller output into the transmitter data pin. On the receiver side, connect the digital data output to an interrupt-capable input when possible, because measuring edge timing is more reliable than occasionally polling the pin.

Place a 100 nF ceramic bypass capacitor close to each module's supply pins and add the bulk capacitance recommended by the module maker. Keep the RF section away from switching regulators, fast display wiring, USB cables, and long unshielded digital leads. Start with the transmitter and receiver a few meters apart; receivers can behave poorly when an extremely strong transmitter is placed directly beside them.

Safety note: Do not connect mains wiring, a powered doorbell transformer circuit, or an unknown chime load directly to a microcontroller pin. Use an appropriately rated and isolated interface designed for the actual load.

Firmware Logic That Rejects False Triggers

A basic ASK/OOK receiver may toggle its data output when no valid transmitter is active. This is normal: at high gain, the receiver amplifies noise and the data slicer turns threshold crossings into apparent pulses. Firmware should assume the raw data stream is untrusted until an entire frame passes validation.

A useful decoder measures the duration of each high and low interval, rejects pulses outside the expected timing window, searches for a preamble and synchronization pattern, then verifies the address and integrity field. After accepting a frame, apply a short lockout so that repeated copies of the same press create one chime event rather than several.

Practical validation checklist

•  Require a valid preamble and synchronization sequence
•  Use timing tolerances rather than one exact pulse width
•  Reject incomplete frames and unknown device identifiers
•  Verify a checksum, CRC, or protocol-specific integrity field
•  Count repeated matching frames when the environment is noisy
•  Trigger the application once, then ignore duplicates for a defined interval

The Antenna Is Part of the Circuit

At 433.92 MHz, the free-space wavelength is about 69.1 cm. A quarter wavelength is therefore about 17.3 cm. That value is a useful starting point for a straight wire monopole, but the final electrical length changes with conductor diameter, insulation, enclosure materials, the PCB ground reference, and nearby objects.

A shortened helical antenna fits into a smaller enclosure, but its efficiency and bandwidth depend strongly on its geometry and surroundings. A remote antenna connected through a 50-ohm RF path can improve placement, provided the module is designed for that interface and the connector and coaxial cable are appropriate for the frequency.

Keep the antenna as straight and vertical as the design allows. Avoid folding it across the PCB, pressing it against a battery, or placing it parallel to large metal surfaces. Similar polarization at both ends usually helps. In a building, test several positions because reflections can create local peaks and nulls even when the straight-line distance barely changes.

λ = c / f ≈ 299,792,458 / 433,920,000 ≈ 0.691 m; λ/4 ≈ 0.173 m

Figure 3. Keep the antenna vertical, clear of metalwork and separated from bundled power wiring

Troubleshooting: Symptom, Likely Cause, Next Test

Change one variable at a time and keep the packet format fixed while testing the RF path. A simple logic analyzer on the receiver data output can reveal whether the problem is missing RF energy, distorted pulse timing, or overly permissive decoding.

Security and Coexistence

Simple fixed-code OOK remotes are easy to observe and replay with general-purpose radio equipment. That may be acceptable for a chime notification, but it is not suitable evidence of identity and should not be used by itself to protect access, safety-critical equipment, or valuable property.

For a more sensitive control, use a protocol with a changing counter, authenticated messages, replay protection, and secure enrollment. Also design for coexistence: short transmissions, a clear address field, frame validation, and restrained retry behavior reduce accidental triggers and unnecessary channel occupancy.

Regional Compliance Matters

The phrase “433 MHz band” does not mean the same operating permission everywhere. In much of Europe, 433.05–434.79 MHz is used by non-specific short-range devices under regional requirements that address transmit level, spectrum access, spurious emissions, receiver performance, and related test methods.

In the United States, many door openers, remote switches, alarms, and similar control transmitters operate under FCC Part 15 rules such as §15.231, which limits the permitted type and duration of transmissions and applies field-strength, bandwidth, and spurious-emission requirements. A module, antenna, and enclosure form one radio system; changing the antenna or RF output path can affect compliance.

Final Takeaway

A 433 MHz ASK/OOK doorbell is simple enough to build on a workbench and rich enough to teach real RF engineering. Reliable operation comes from treating the entire path as a system: clean power, disciplined framing, receiver-aware firmware, an efficient antenna, controlled installation, and repeatable testing.

If the prototype works but the installed product does not, resist the urge to judge the transmitter by distance alone. Look at the raw receive waveform, confirm the frame timing, inspect the antenna environment, and verify the complete RF connection—including any coaxial cable and connector—at the actual operating frequency.

Key takeaway: Build the digital logic and the RF path together. A valid packet is the final product; radio energy by itself is only the beginning.
