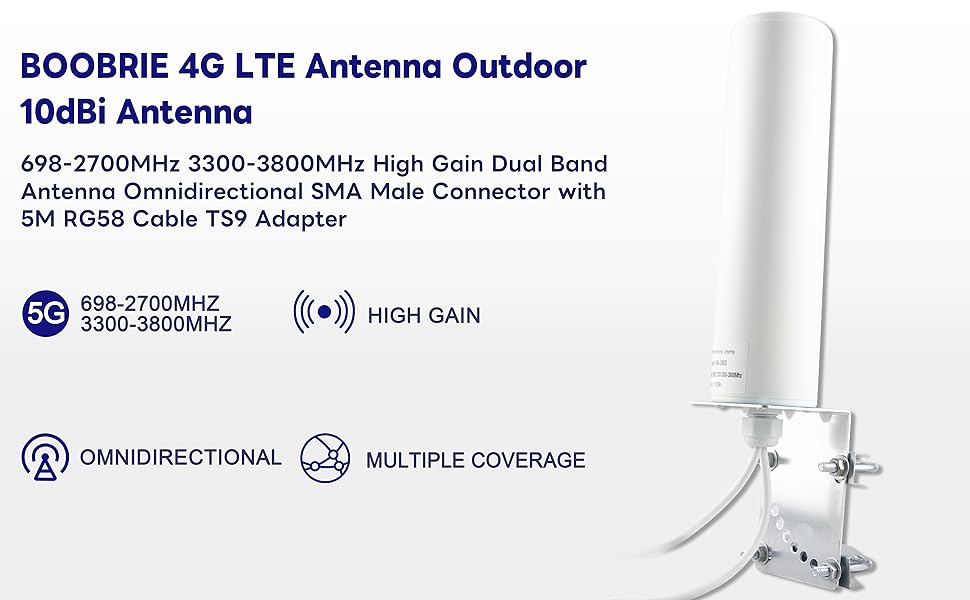

BOOBRIE Upgraded 4G 5G LTE Antenna Outdoor 10dBi 698-2700 3300-3800MHz High Gain Signal Booster WiFi Antenna Dual SMA Male 16.4ft RG58 Cable SMA 4G LTE Omni-Directional Long Range Antenna Router Hotspot Wireless

Outdoor Cellular Antenna for Compatible Routers and Gateways

Position your cellular antenna outside or away from indoor obstructions with the BOOBRIE 4G/5G outdoor antenna. Supporting 698–2700MHz and 3300–3800MHz, it combines a listed 10dBi gain with an omnidirectional design and two attached 5m / 16.4ft RG58 cables.

Dual SMA male connectors provide a connection option for compatible cellular routers, modems and industrial gateways. Check your equipment’s external antenna ports and operating bands before ordering.

Key Features

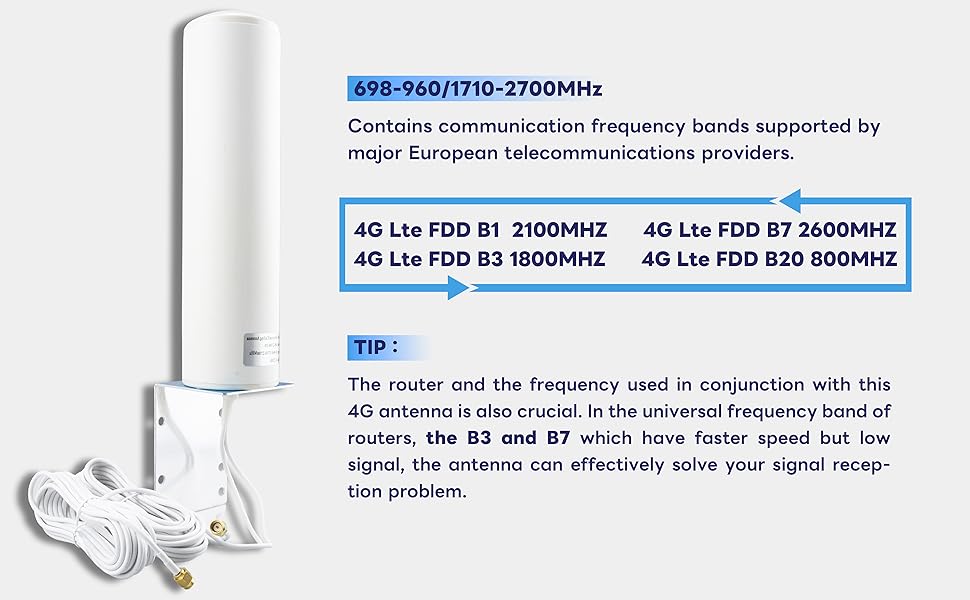

4G LTE and 5G Frequency Support

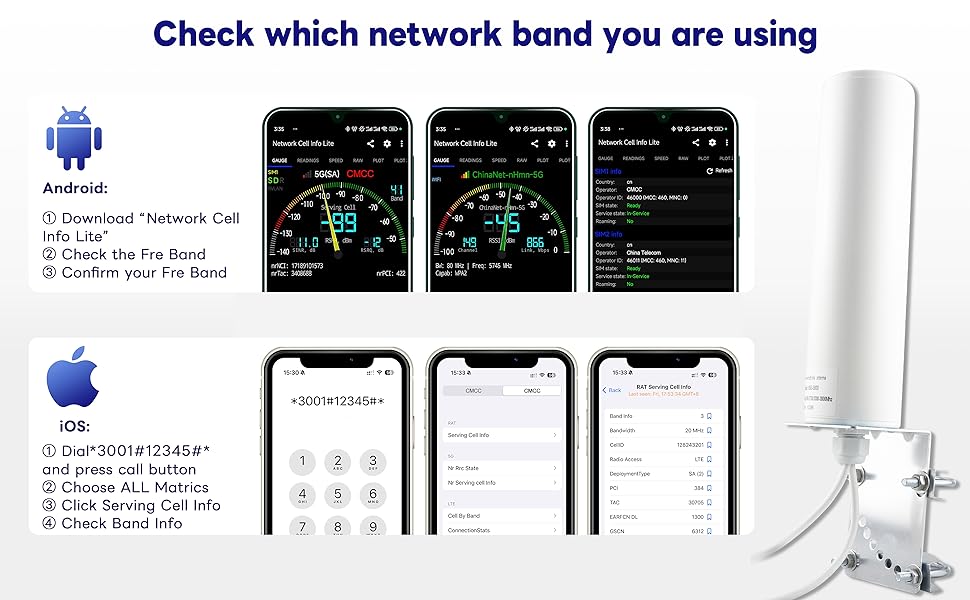

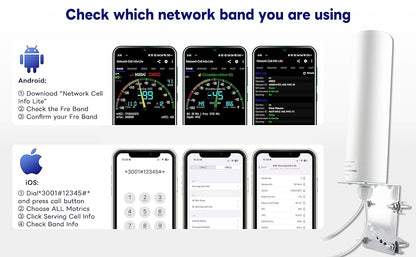

Supports compatible cellular applications within 698–2700MHz and 3300–3800MHz. Match these ranges to the bands used by your router and local network. Compatibility depends on the specific equipment model and operating frequencies.

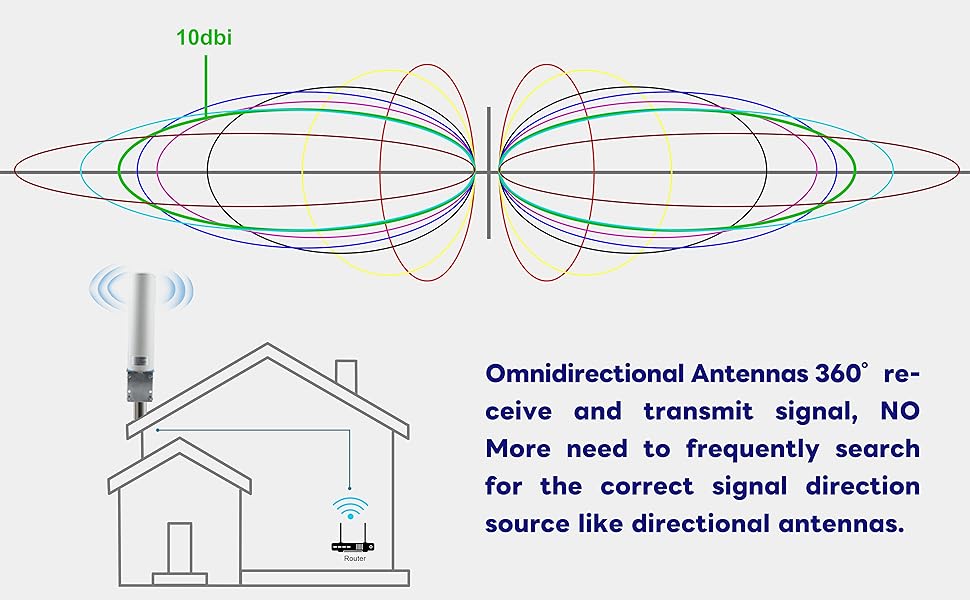

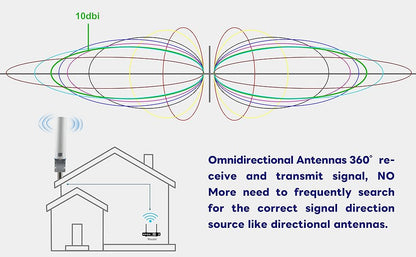

10dBi Omnidirectional Design

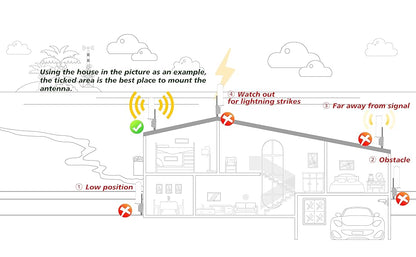

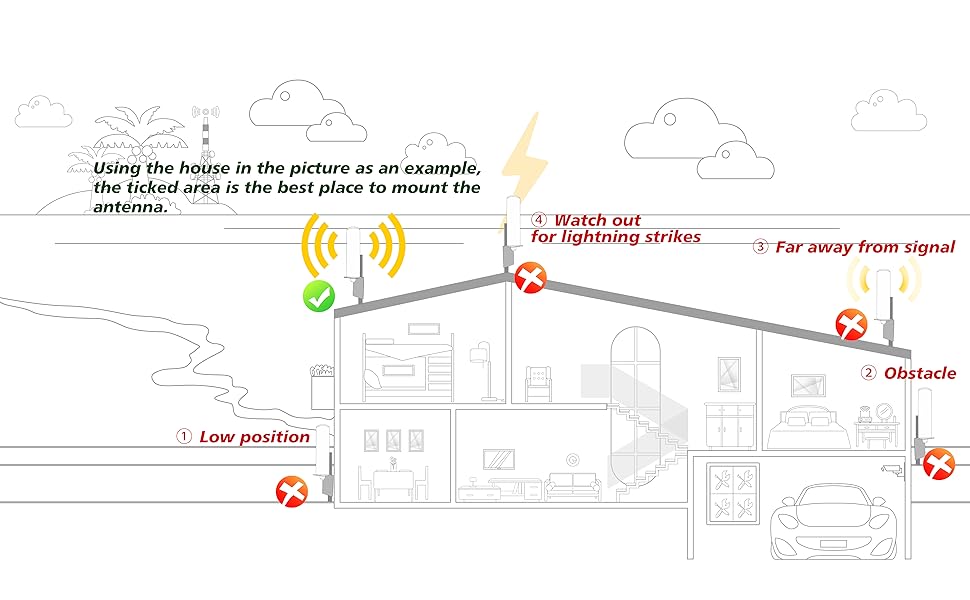

The omnidirectional pattern provides reception around the antenna in the horizontal plane without precise aiming toward one tower. Installation height, nearby buildings and metal obstructions can affect results.

Dual SMA Male Connections
Both cable ends use SMA male connectors with internal threads and a center pin, mating with SMA female ports. Connect the leads to the external cellular antenna ports specified in your device manual. Equipment with TS9 or other ports requires suitable adapters.

Two Included 5m RG58 Cables
Each attached cable measures 5m / 16.4ft, allowing flexible antenna placement away from your equipment. No separate extension cable is needed when the supplied length reaches your router. Avoid unnecessary extensions to limit additional signal loss.

Outdoor Installation with Mounting Hardware
The white outdoor housing comes with a mounting bracket and U-bolt hardware for pole installation. Secure the antenna and cables, and protect exposed connections from moisture. The mounting pole is not included.

Specifications

• Antenna type: Outdoor cellular antenna
• Radiation pattern: Omnidirectional
• Frequency ranges: 698–2700MHz and 3300–3800MHz
• Listed antenna gain: 10dBi
• Impedance: 50Ω
• Listed VSWR: <1.5
• Cable quantity: 2
• Cable type: RG58 coaxial cable
• Cable length: 5m / 16.4ft each
• Cable-end connectors: 2 × SMA male
• Housing dimensions: Approximately 234mm high × 63mm diameter
• Overall height with bracket: Approximately 340mm
• Mounting accessories: Bracket and U-bolt hardware
• Mounting pole: Not included
