10DBi 600-6000Mhz Directional Antenna 4G LTE 5G WiFi Outdoor Antenna Wideband High Gain Yagi Antennas SMA Male Universal for Modem Routers Gateways Hotspot Cellular Signal Boost

📌 Key Points

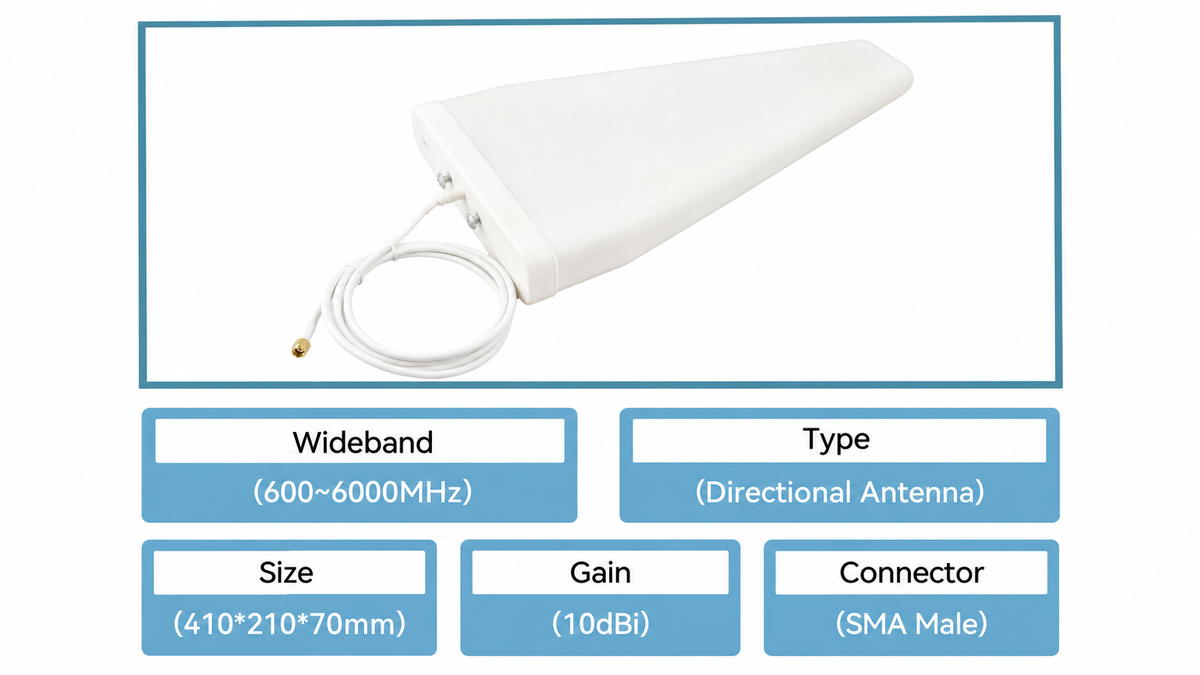

〖600–6000MHz Wideband Coverage〗
Designed for compatible 4G LTE, sub-6GHz 5G and WiFi applications within the 600–6000MHz frequency range. Check your device’s operating bands and external antenna requirements before purchasing.

〖10dBi Directional Design〗

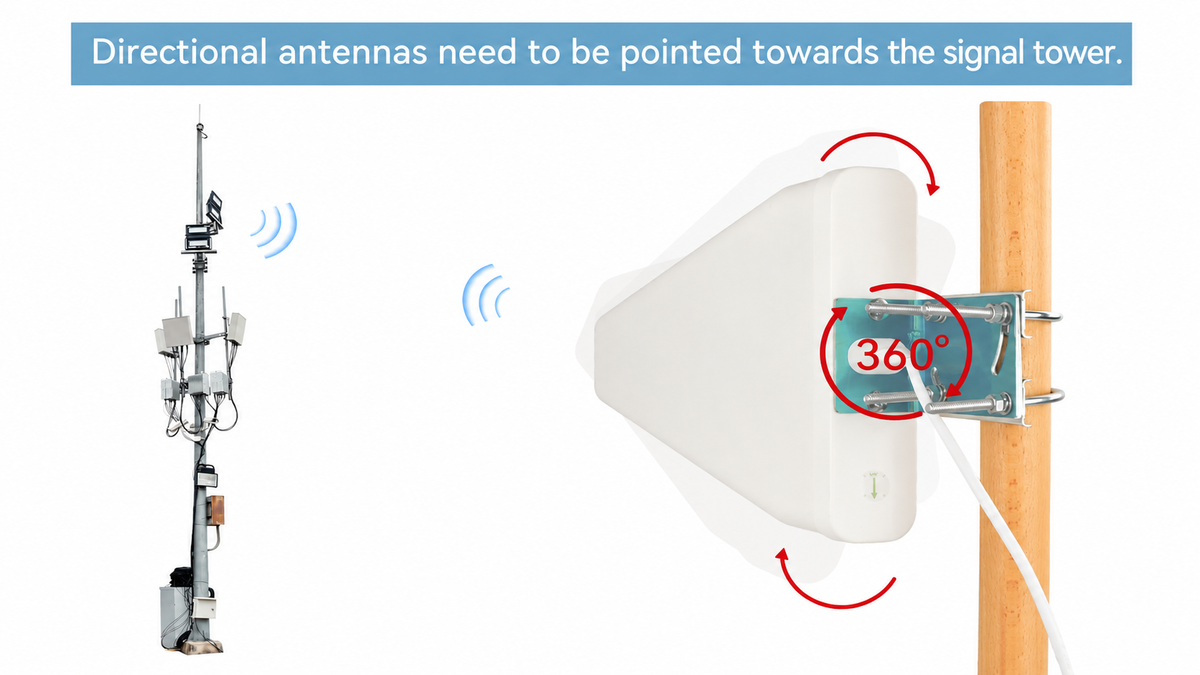

Aim the antenna toward your target base station or wireless access point. Its directional design makes it suitable for fixed installations where the signal source is in a known direction.

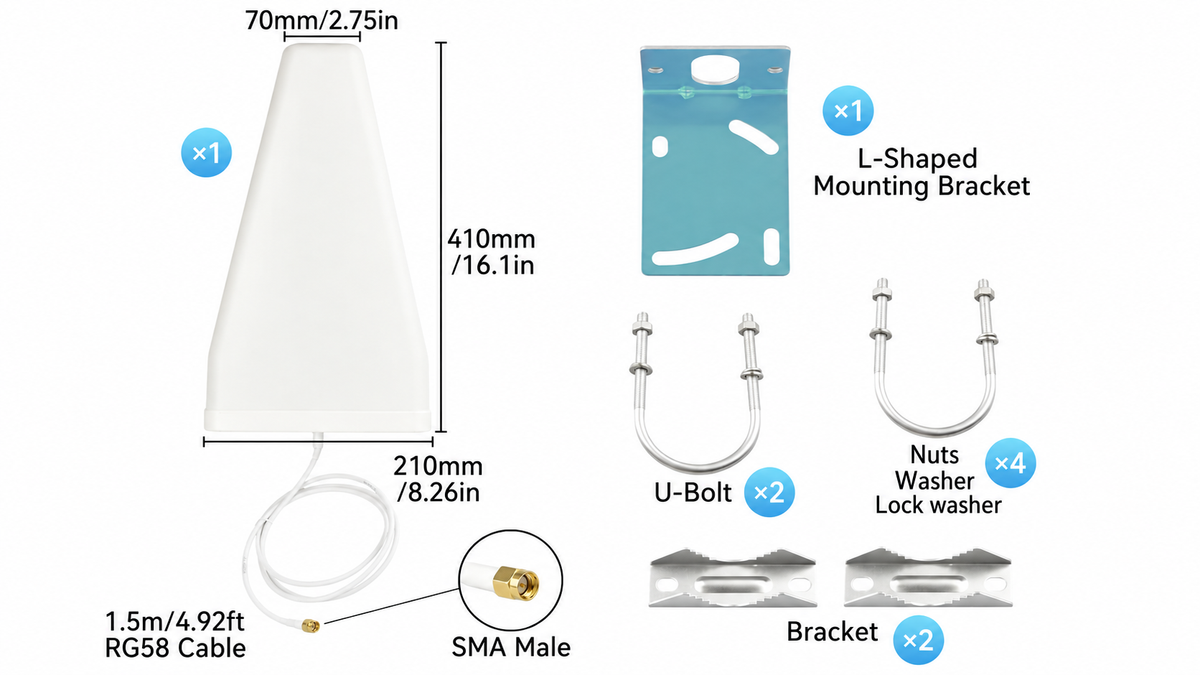

〖SMA Male Connector & RG58 Cable〗
Equipped with an SMA male connector and a 1.5m / 4.92ft RG58 coaxial cable for connection to compatible equipment with an SMA female antenna port.

〖Outdoor Installation〗
Designed for outdoor use, with a specified operating temperature range of −30°C to +85°C. The pole-mount arrangement allows positioning outside the building to help address poor indoor reception.

〖For Routers, Hotspots & Gateways〗
Suitable for compatible cellular routers, modems, hotspots and gateways. Device compatibility depends on the connector, supported frequencies and antenna configuration.

📝 Product Details

🛠 Installation Guide

Check compatibility. Confirm that your device supports an external antenna, operates within the antenna’s frequency range and has a matching antenna port.

Choose the location. Select a secure outdoor position with a clear path toward the intended signal source where possible.

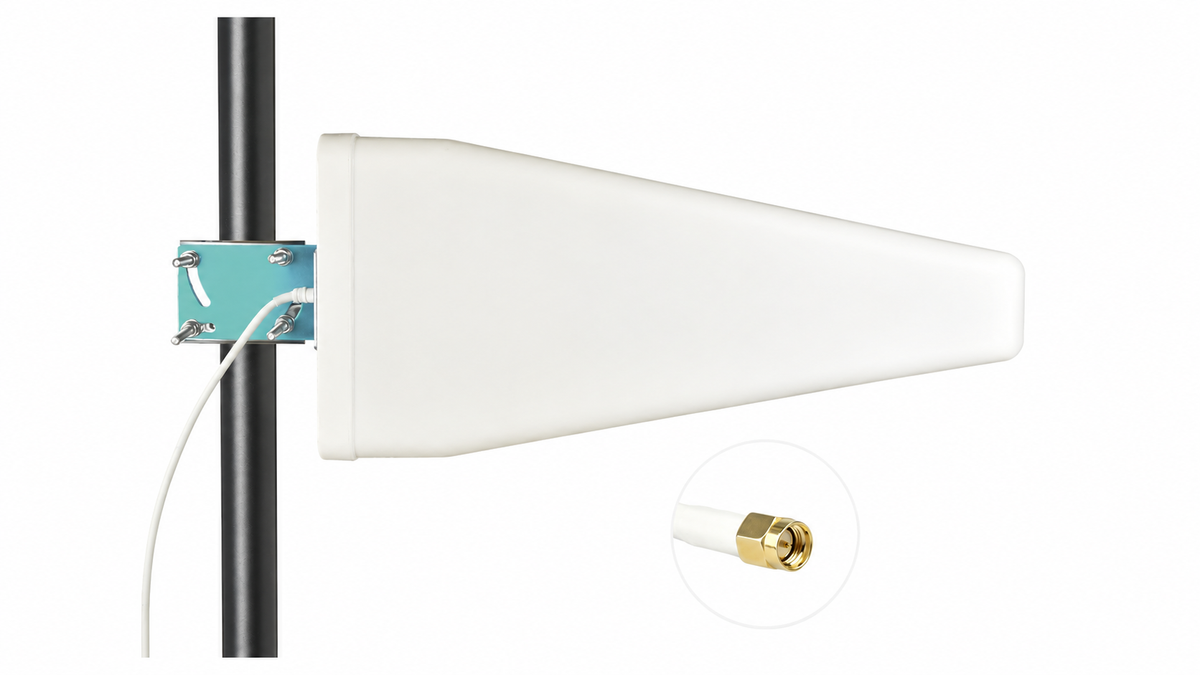

Secure the antenna. Attach it firmly to a suitable pole using appropriate mounting hardware.

Route and connect the cable. Avoid sharp bends, pinching or strain on the cable. Connect the SMA male plug to the matching device port without overtightening.

Align and test. Make small directional adjustments while checking your device’s signal readings and connection performance.

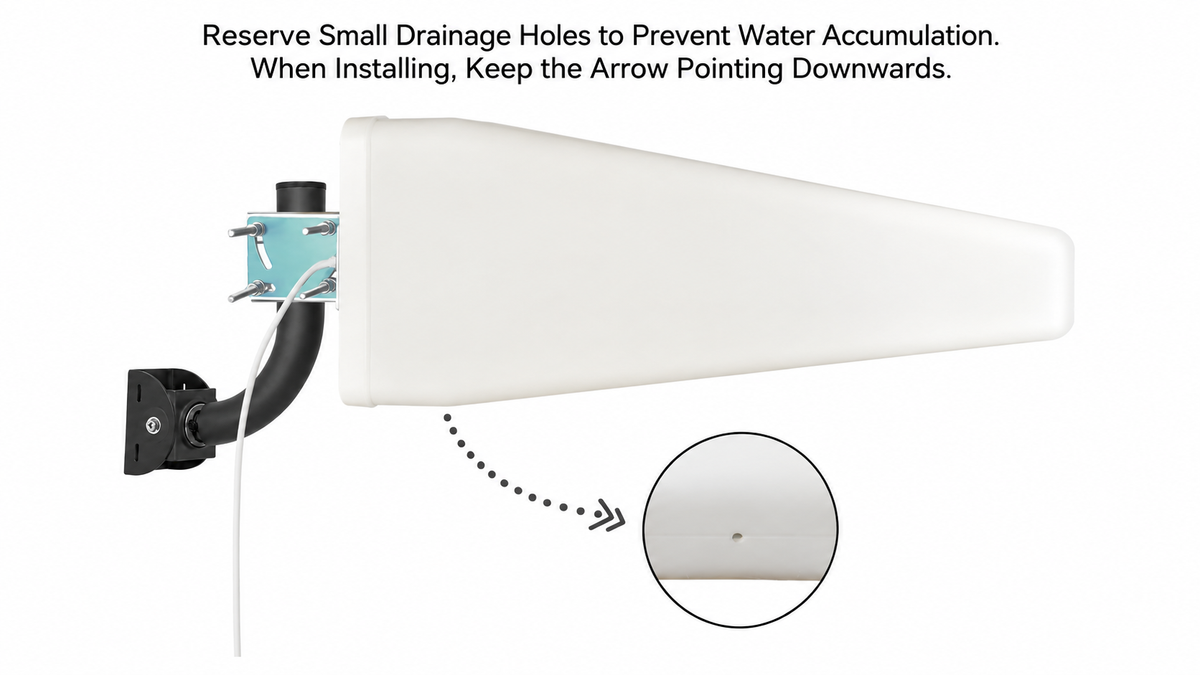

Check the installation. Protect exposed connections from moisture and periodically inspect the mounting hardware and cable.

❓ FAQ

FAQ

Q1: What is the benefit of a directional antenna, and how should I position it?

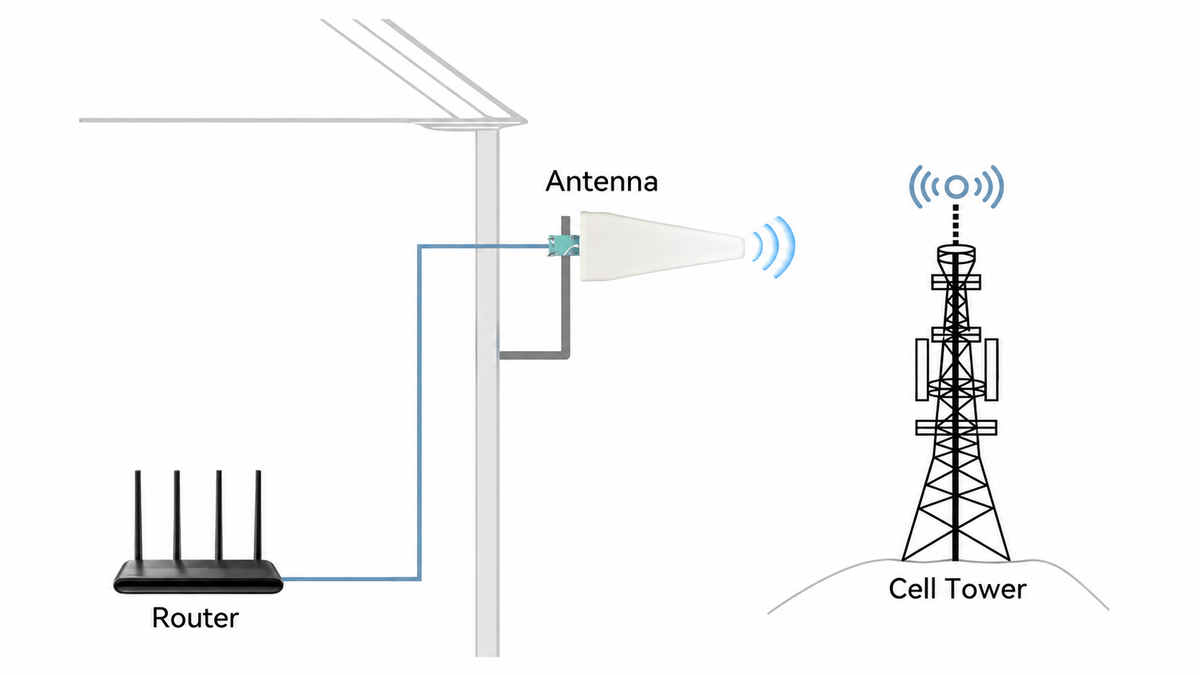

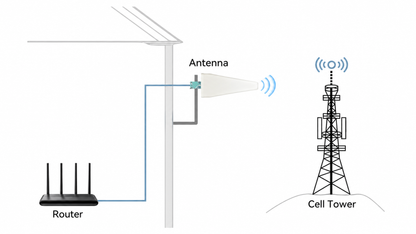

A directional antenna focuses reception toward a selected direction, making it suitable for fixed installations where the serving cell tower or wireless access point is in a known direction. Mount the antenna in a clear location, aim it toward the signal source, and fine-tune its orientation using your device’s signal readings.

Q2: Will it work with my 4G or 5G router?
This antenna is designed for compatible 4G LTE and sub-6 GHz 5G routers operating within 600–6000MHz. Check your router’s supported frequency bands, external antenna connector and antenna requirements before connecting.

Q3: How can I connect this antenna to a router with a TS9 port?
Use an SMA female to TS9 male adapter or adapter cable to connect the antenna’s SMA male connector to your router’s TS9 port. Contact BOOBRIE with your router model for help selecting a suitable adapter.

Q4: Can I use it for WiFi?
Yes, with compatible WiFi equipment operating on supported 2.4GHz or 5GHz bands within the antenna’s specified frequency range. Check the device’s external antenna requirements and connector type; an RP-SMA port requires an appropriate SMA-to-RP-SMA adapter.

Q5: How can I get the best performance from this antenna?
For effective operation, connect the antenna to compatible equipment in an area with available network coverage. Mount it in a clear location, secure the connections, and aim it toward the serving signal source. Fine-tune its position using your device’s signal readings to achieve the best reception available at your installation site.
