4G LTE Fiberglass Omni Antenna 698-2700MHz with 6.56ft RG58U Extension Cable RP-SMA Male Compact White Design U-Bracket Mount for Cellular Router IP Camera Hotspot Modem

📌 Key Points

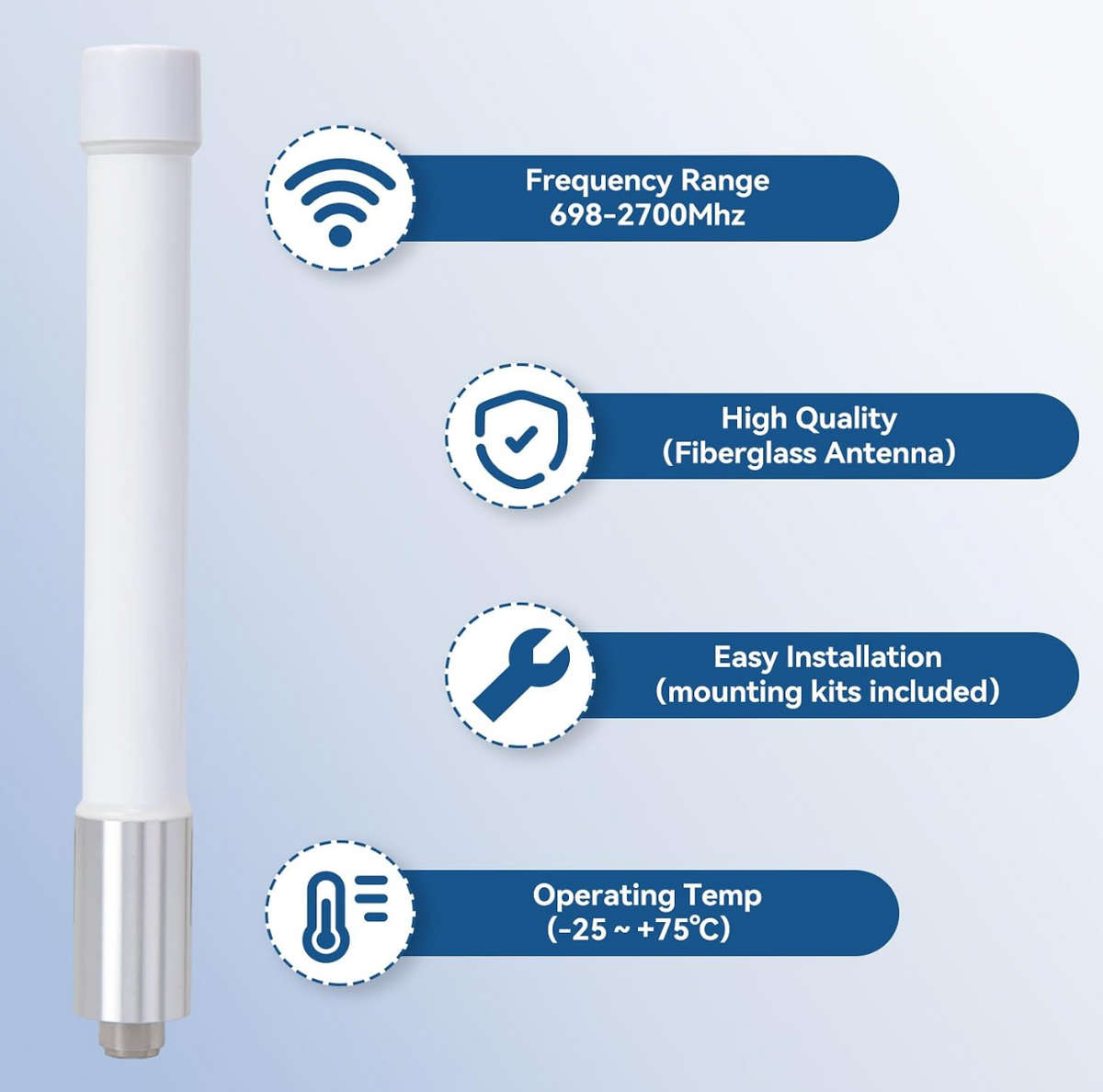

• 698–2700 MHz 4G LTE Coverage — Designed for compatible cellular routers, hotspots, modems, CPE gateways and cellular IP cameras operating within this frequency range. An external antenna option for homes, offices, garages and remote installations with available LTE coverage.
• 3 dBi Omnidirectional Design — Provides 360-degree horizontal coverage without precise aiming toward a cell tower. Mount the antenna vertically in an elevated, unobstructed location to make better use of the available cellular signal.

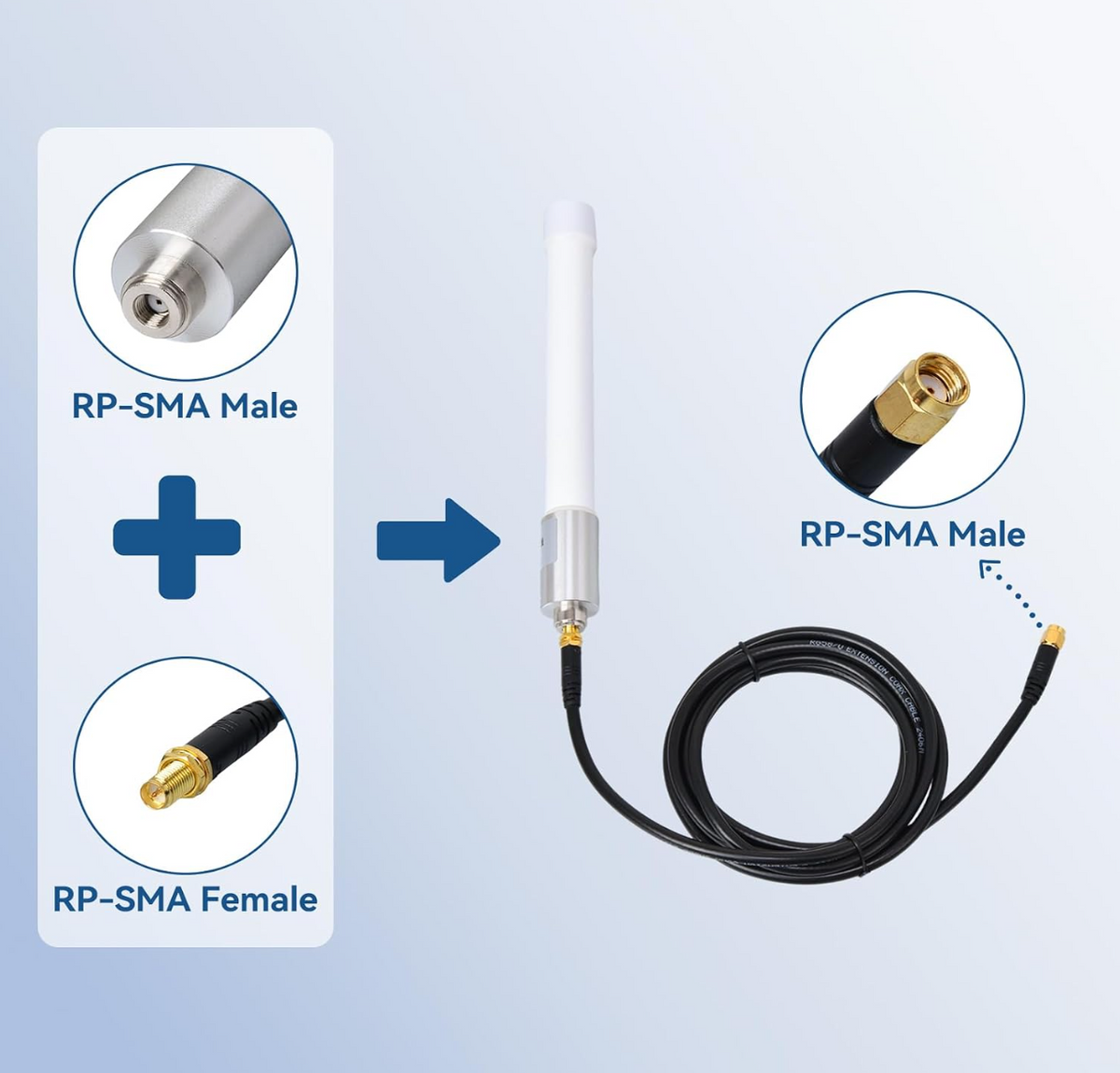

• RP-SMA Connector — Check Before Ordering — The antenna uses an RP-SMA male connector with internal threads and a center socket. It connects to an RP-SMA female cellular antenna port with external threads and a center pin. Standard SMA has different center contacts, so confirm your device’s connector type before purchase.
• 2 m / 6.56 ft RG58U Cable Included — We include a 50-ohm RG58U extension cable with RP-SMA female-to-male connectors. Position the antenna away from nearby obstructions without purchasing a separate extension cable for this 2 m setup.

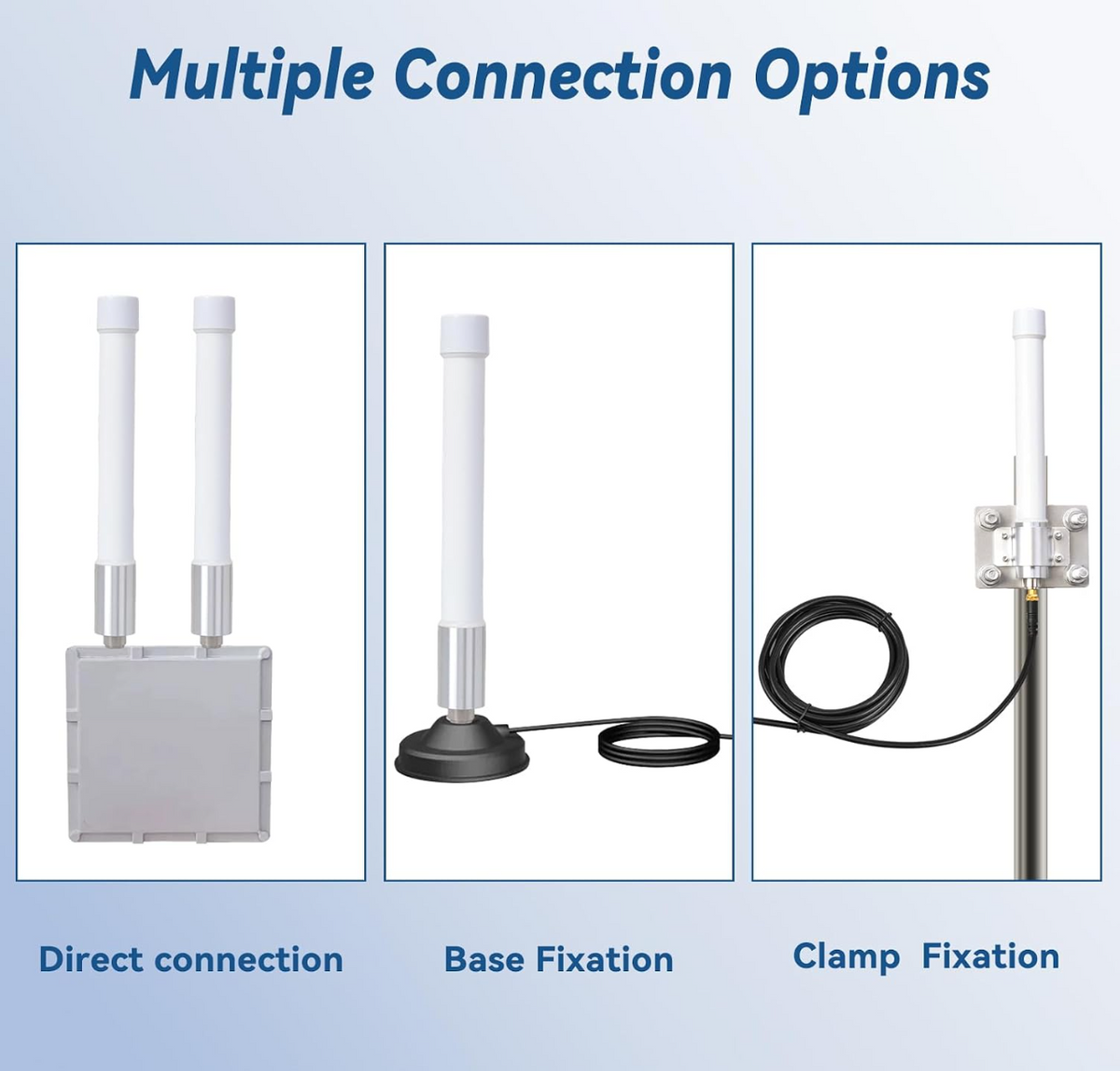

• Compact Fiberglass Housing & Mounting Kit — The white antenna measures just 200 mm / 7.87 in long. Its weather-resistant, UV-resistant fiberglass housing is designed for outdoor use, while the included bracket, U-bolts and fastening hardware support pole or wall installation.

📝 Product Details

Ⅰ. Design & Functionality

Indoor cellular reception can be affected by walls, metal surfaces and the position of your router. Moving an external antenna to a more open location may help your compatible device access a better signal.

Our BOOBRIE 4G LTE outdoor antenna combines a compact fiberglass housing, a 3 dBi omnidirectional design and a supplied 2 m RG58U cable. This gives you flexibility to position the antenna near a suitable outdoor mounting point while keeping your cellular device in a convenient location.

The omnidirectional pattern receives signals around the antenna’s vertical axis, making installation straightforward when the cell tower’s direction is unknown. Actual results depend on local coverage, obstructions, cable loss and device compatibility.

Ⅱ. Specification Highlights

Ⅲ. Suitable Applications

Compatible 4G LTE routers and hotspots at homes or offices.

Cellular gateways in garages, workshops and remote buildings.

Cellular IP cameras with a matching external antenna connection.

Industrial IoT equipment using supported cellular frequencies and an RP-SMA female antenna port.

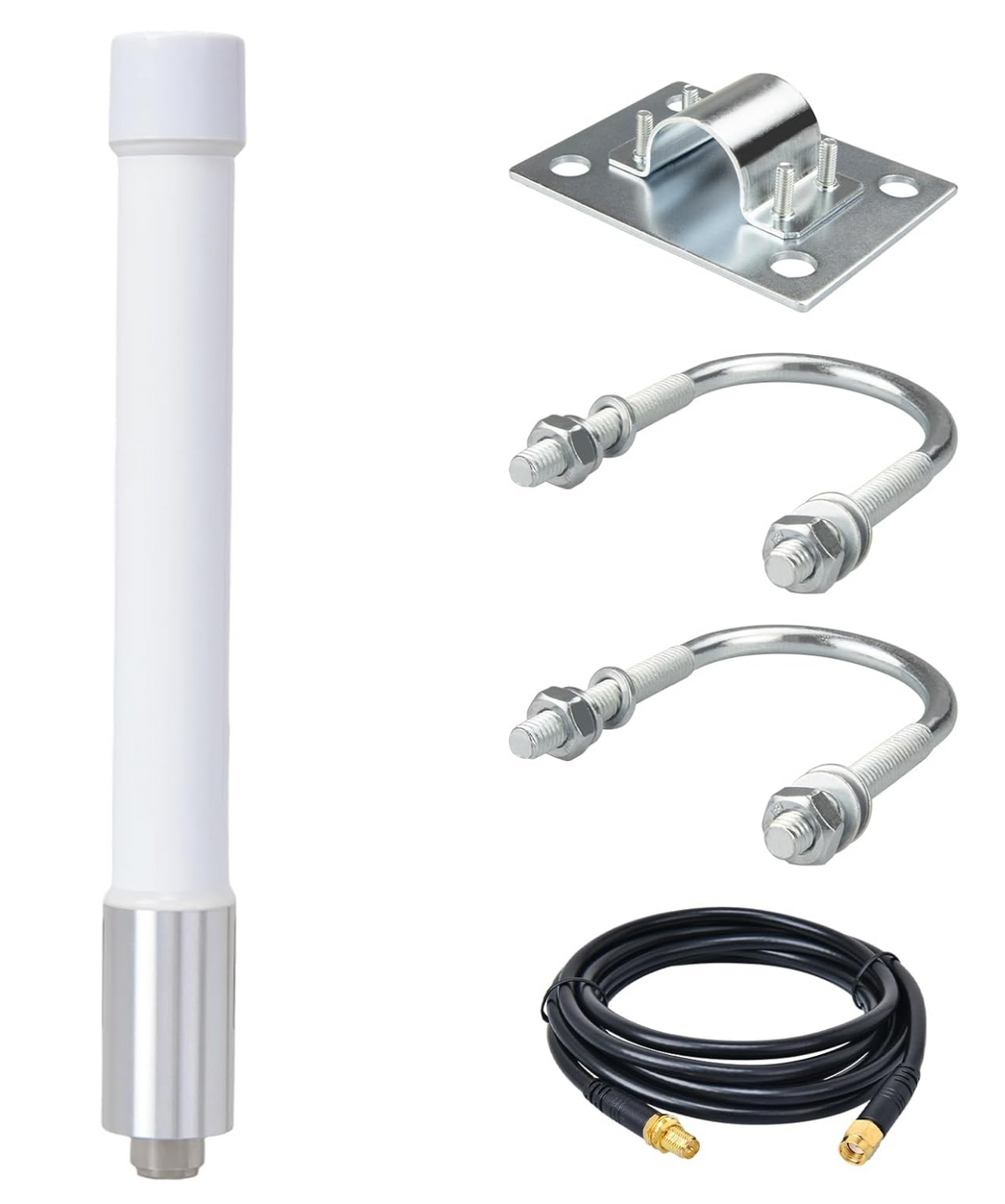

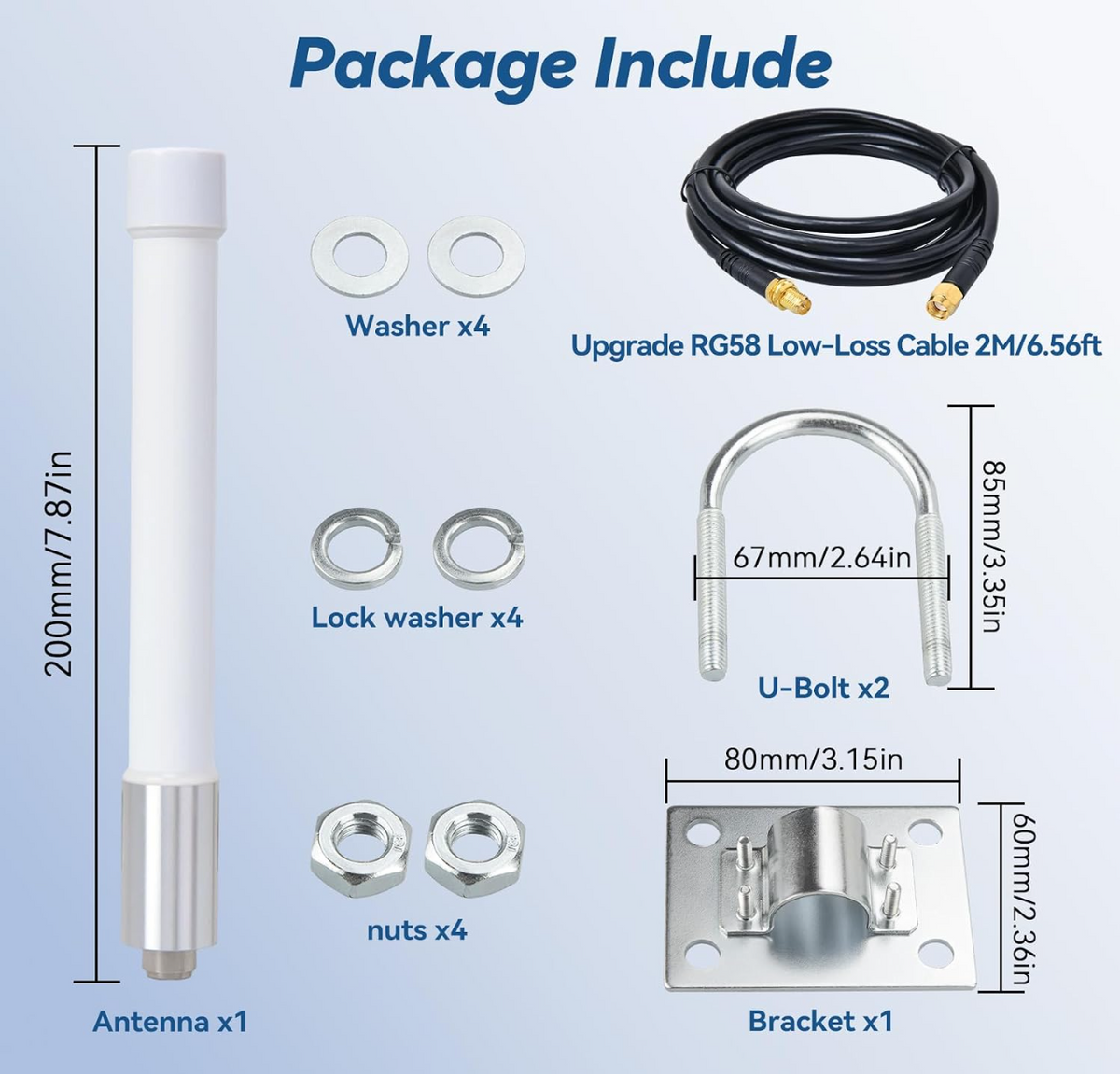

Ⅳ. Package Contents

• 1 × BOOBRIE fiberglass antenna
• 1 × 2 m RG58U RP-SMA female-to-male extension cable
• 1 × Mounting bracket
• 2 × U-bolts
• 4 × Nuts
• 4 × Flat washers
• 4 × Lock washers

🛠 Installation Guide

1. Check your device. Confirm that its cellular antenna port is RP-SMA female and that its operating frequencies fall within 698–2700 MHz.
2. Test the location. Choose an elevated position away from large metal surfaces and dense obstructions. Check reception before securing the final installation.
3. Mount the antenna vertically. Use the supplied bracket and appropriate fastening hardware for your pole or wall.
4. Connect the included cable. Attach the RP-SMA female cable end to the antenna and the RP-SMA male end to your device’s matching cellular antenna port. Hand-tighten without excessive force.
5. Route and protect the cable. Avoid sharp bends, crushing and tension at the connectors. Protect outdoor connector joints from moisture.
6. Test and adjust. Compare reception and connection performance before and after installation. Small changes in mounting height or location may improve the result.

❓ FAQ

Q1: How do I know whether the connector fits my device?

Look for an RP-SMA female cellular antenna port: it has threads on the outside and a small pin in the center. Our RP-SMA male connector has threads on the inside and a hole in the center. Check both features, because standard SMA connectors look similar.

Q2: Do I need to buy an antenna extension cable separately?

We include a 2 m / 6.56 ft RG58U extension cable. You do not need another extension cable if this length reaches your chosen mounting location.

Q3: Does it support every 4G LTE band?

The specified frequency range is 698–2700 MHz. Check the bands used by your device and local network. This model does not cover 600 MHz Band 71.

Q4: Can I use it outdoors?

Yes. The fiberglass housing is designed for outdoor use and is weather-resistant and UV-resistant. Protect exposed cable connections from moisture and periodically check the mounting hardware.

Q5: My router has two antenna ports. Is one antenna enough?

This package contains one antenna with one connection. Follow your router manufacturer’s instructions for the required number of external antennas, especially for devices using MIMO.

Q6: Will it create a signal where there is no coverage?

This is a passive antenna and requires an available cellular signal. Results depend on local network coverage, installation position and device compatibility.
