📌 Key Points

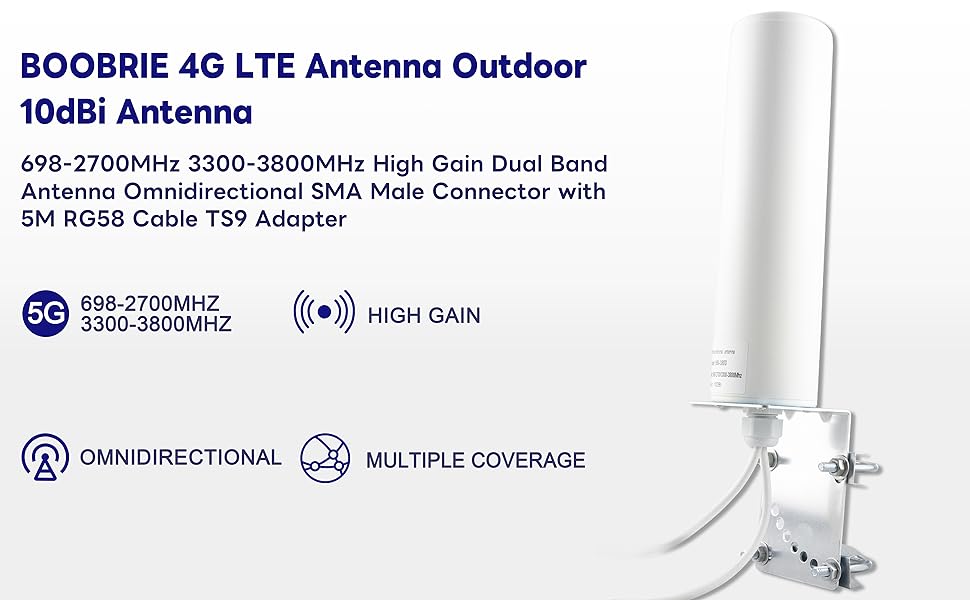

【Global Band Coverage】This outdoor 4G 5G LTE antenna supports 600-2700 MHz and 3300-4200 MHz frequency bands, making it compatible with most 4G LTE and select 5G networks worldwide.
【10 dBi High Gain Design】With its high 10dBi gain, this antenna is built to pinpoint and amplify weak signals, significantly improving reception in challenging locations and maintaining a stable connection even in remote or low-signal areas.
【Dual SMA Male Connectors + TS9 Adapter Kit】It includes two SMA male connectors and two SMA-female to TS9-male adapters, ensuring compatibility with a wide range of routers, hotspots, and gateways.

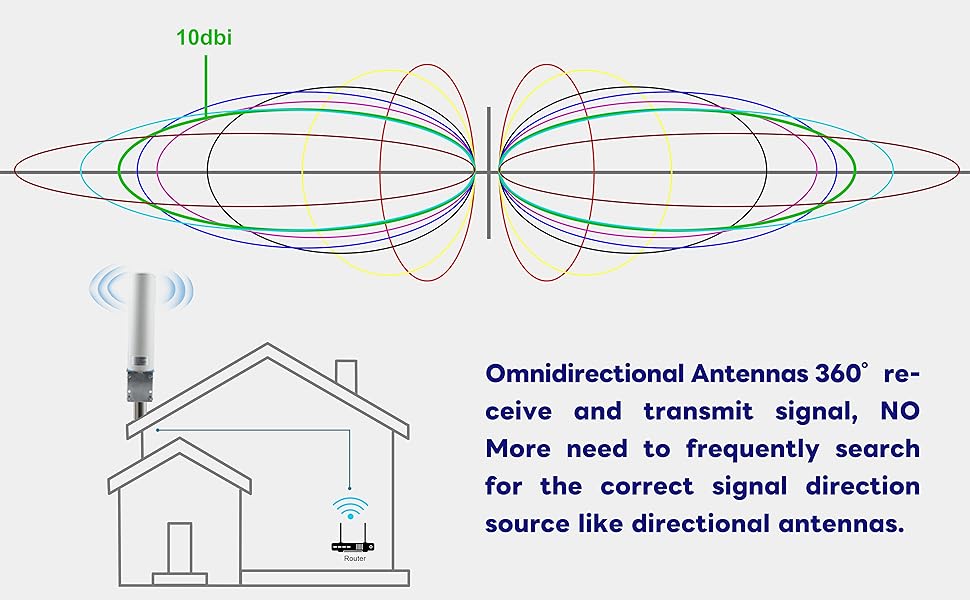

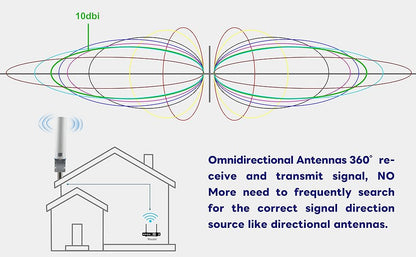

【Omnidirectional Design】Acting as an outdoor 4G LTE antenna and outdoor 5G LTE antenna, its omnidirectional design captures signals from all directions—perfect for when you don't know the tower's location.
【Outdoor Mounting Structure / Plug-and-Play】The package includes a 5m RG58 low-loss coaxial cable for a plug-and-play setup. You can place your router indoors while mounting the antenna outdoors at a high elevation for optimal performance. Featuring a UV-resistant housing and a robust weatherproof bracket, it easily supports wall or pole mounting.
📝 Product Details
Ⅰ.Design & Functionality
In many regions—particularly suburbs, rural areas, locations with dense building obstructions, or basements—mobile signals are significantly weakened before reaching indoor devices. In such scenarios, a high-performance outdoor antenna is the most effective solution for signal enhancement. According to industry guidelines, outdoor antennas should be installed at a height above obstructions and kept clear of metal structures (e.g., metal facades that can act as Faraday cages) to maximize signal reception.
The BOOBRIE antenna features a 10 dBi high-gain design, which means it offers a stronger ability to "capture" weak signals from base stations even in low-reception environments—situations where the signal is otherwise too faint to be clearly detected. Based on wireless communication theory, higher gain helps compensate for free-space path loss (FSPL) as well as losses caused by penetration and reflection.

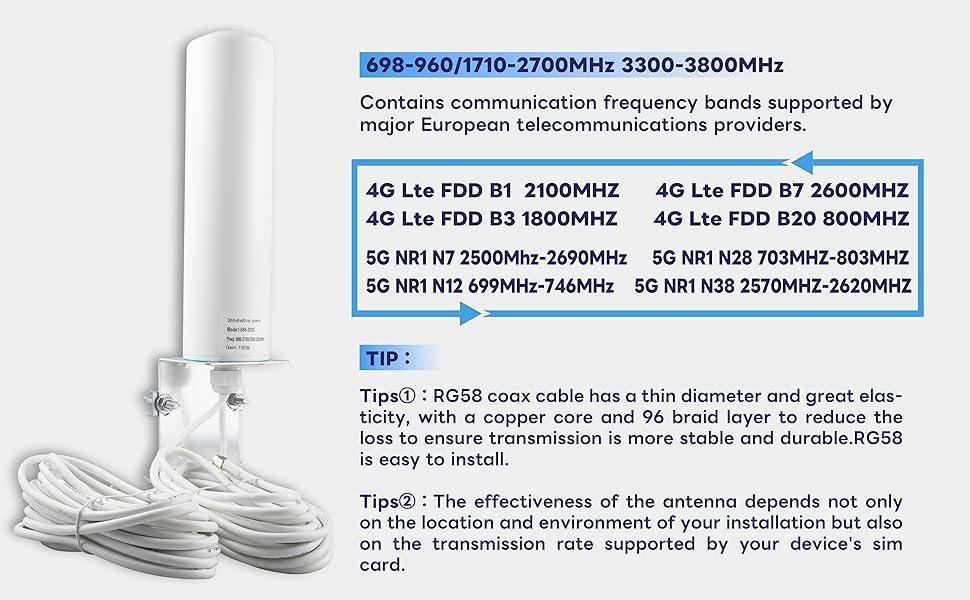

Supporting a broad frequency range of 600–2700 MHz and 3300–4200 MHz, this antenna is compatible not only with mainstream 4G and 5G networks worldwide, but also covers the 2.4 GHz WiFi band.

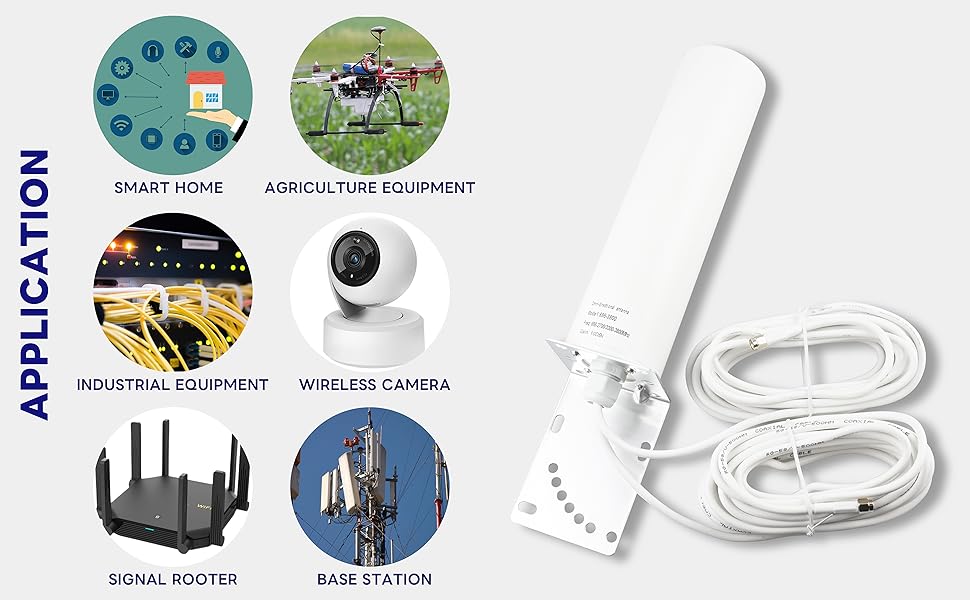

Typical use cases include: remote residences, rooftop homes, RVs/campers, commercial gateways in weak-signal environments, and offices where indoor gateway performance is unstable.
Ⅱ.Specification Highlights
Frequency Range: 600-2700 MHz & 3300-4200 MHz
Gain: 10 dBi
Connector: Dual SMA Male + 2 × SMA-Female → TS9-Male adapters
Cable: 5 m RG58 low-loss coaxial
Mounting: Wall mount or pole/mast mount
Environment: Outdoor-rated, UV and corrosion resistant
Applicable Devices: 4G LTE Routers / 5G CPEs / Mobile Hotspots / Industrial Gateways
🛠 Installation Guide

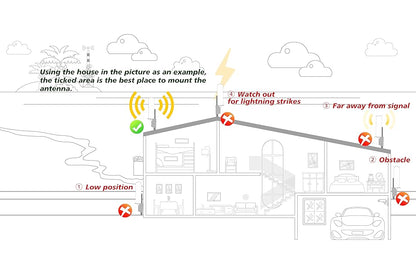

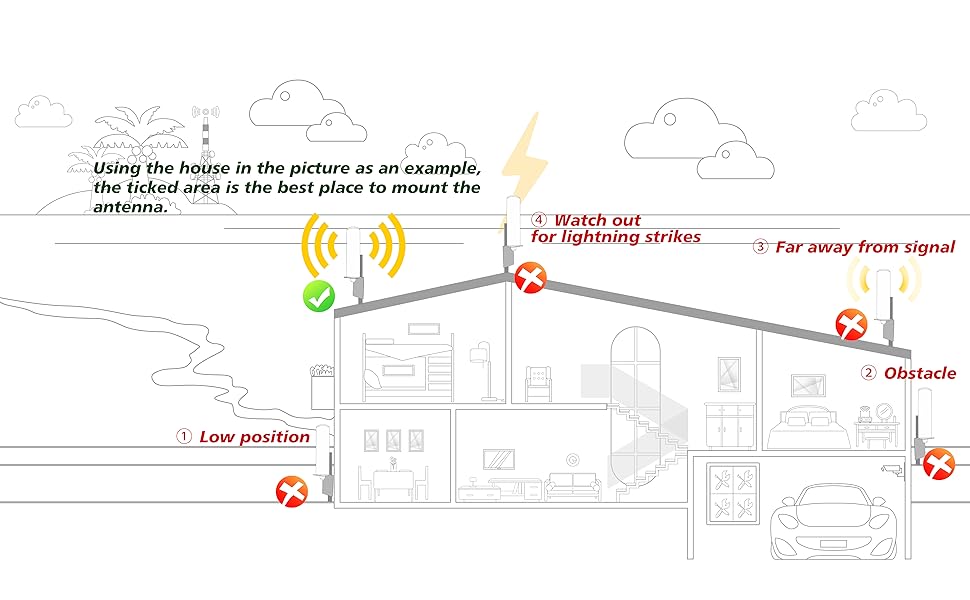

Choose the right spot – Select a high outdoor location such as a roof edge, high wall, or mast/pole. Avoid low ground level, metal obstructions or tree-canopy shaded locations. Good LOS (line of sight) is critical.
Mount the bracket – Use the included wall or pole mounting kit. Ensure the mount is secure and able to withstand wind, rain and environmental stress.
Run the cable – Connect the antenna to the supplied 5 m RG58 cable, route the cable into your indoor room. Avoid kinks, sharp bends or long unnecessary cable runs (because loss increases over distance).
Connect to your router/hotspot – Use the dual SMA male connectors and/or TS9 adapters to match your device’s antenna ports. Hand-tighten securely but avoid excessive force.
Place your router indoors – Keep it in a well-ventilated area, away from large metal objects or dense walls. The antenna outdoors does the heavy lifting; the device stays inside for convenience.
Test and adjust – After powering your router, monitor signal strength and throughput. As installation guides suggest, even with an omnidirectional antenna, a small adjustment in height or orientation may yield better results.
Maintenance – Periodically check the installation: ensure the mount is tight, the coax cable is intact, the connectors sealed from moisture. Outdoor exposure demands ongoing maintenance.
❓ FAQ
Q1: What scenarios is this antenna suitable for?
A1: It's ideal for locations with weak signals or poor indoor reception, such as homes, offices, garages, boats, RVs, and remote cabins. It performs especially well when installed in elevated, unobstructed locations like rooftops or yards.
Q2: My router has two antenna ports. Should I use this one?
A2: If your device requires dual antenna inputs (2×MIMO), this product features dual SMA outputs. Please verify your device supports two independent antenna inputs. For more specialized MIMO requirements (e.g., 4×4 or 5G high-frequency scenarios), consider higher-grade antennas.
Q3: Can I use this in rainy/coastal environments?
A3: This antenna features an outdoor weather-resistant design with UV-resistant and corrosion-resistant materials. However, in coastal areas with severe salt fog or high corrosion, we recommend applying anti-corrosion spray during installation or selecting a dedicated marine-grade antenna.
Q4: Will it work if my area has extremely weak signals?

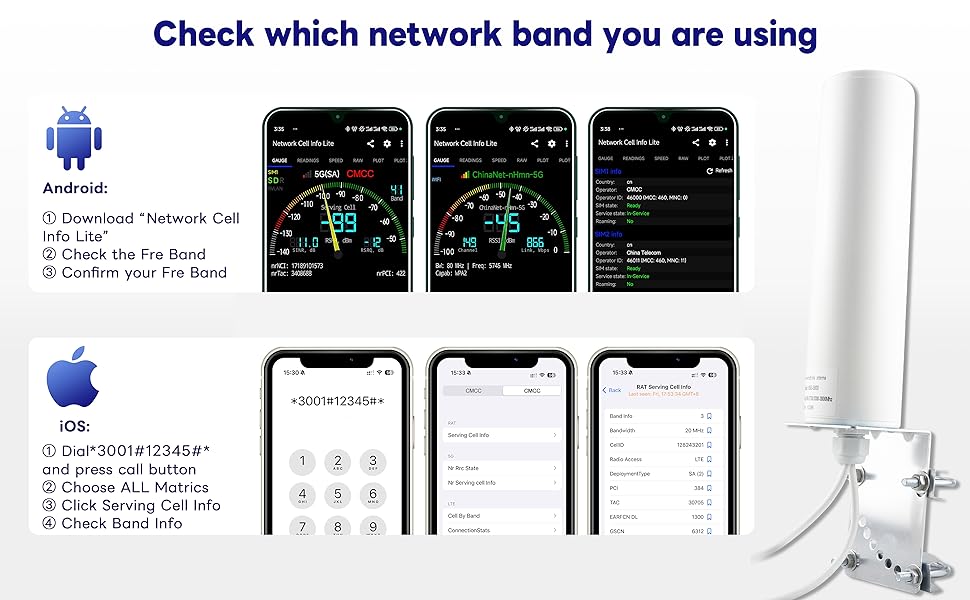

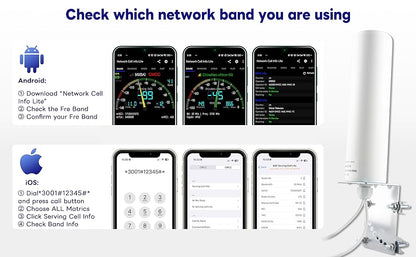

A4: The antenna improves signal reception, but effectiveness may be limited if the original outdoor signal is very weak or nearly absent. We recommend first measuring the best outdoor signal strength using tools like a phone before deciding. If signals are extremely weak, consider directional high-gain antennas.
Q5: What if I don't see noticeable improvement after installation?
A5: Possible causes include low antenna placement, insufficient height, large metal obstructions nearby, excessively long cables or high signal loss, or mismatched device interfaces. We recommend increasing installation height, reducing obstructions, shortening cable length, and ensuring all connections are secure.
👍 Why Choose BOOBRIE
When indoor antennas or routers fail to consistently receive stable signals from mobile base stations, selecting a high-quality external outdoor antenna is the most direct and effective solution. The BOOBRIE antenna is meticulously engineered with wide bandwidth, multiple interfaces, high gain, outdoor durability, and easy installation. Install it once and enjoy enhanced network performance long-term. Whether for home use, mobile applications, remote sites, or commercial purposes, it serves as a reliable enhancement solution.
