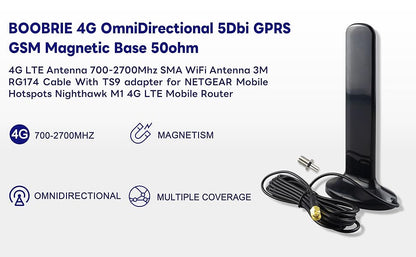

BOOBRIE Antenna External 4G 5dbi+SMA TS9 Adapter GPS GSM Magnetic Base 4G Antenna 700-2700Mhz SMA WiFi Antenna 3M RG174 Cable 4G LTE OmniDirectional For NETGEAR Mobile Hotspots Nighthawk 4G LTE Router

Flexible Antenna Placement for Cellular Routers and Hotspots

The BOOBRIE magnetic 4G LTE antenna provides an external antenna option for compatible cellular routers, modems and mobile hotspots. Supporting 700–2700MHz, it combines a listed 5dBi gain with an omnidirectional design and an attached 3m / 9.84ft RG174 cable.

Connect directly to a suitable SMA female antenna port, or use the included SMA female-to-TS9 male adapter for compatible TS9-equipped devices.

Key Features

700–2700MHz Cellular Coverage
Designed for compatible 4G LTE equipment operating within the specified frequency range. Check the bands used by your device and local network before ordering. Matching the connector alone does not establish full compatibility.

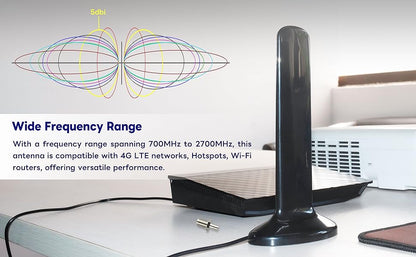

5dBi Omnidirectional Design
Provides reception around the antenna in the horizontal plane without precise aiming toward a single tower. The vertically polarized design is intended for upright placement. Results depend on the available signal, antenna position and surrounding obstructions.

SMA Connection with Included TS9 Adapter
The cable terminates in an SMA male connector with internal threads and a center pin. For TS9 devices, screw the included adapter onto the SMA plug, then connect its TS9 end to the designated external cellular antenna socket.

Included 3m RG174 Cable
The attached 9.84ft coaxial cable provides flexibility to position the antenna away from your equipment or nearby obstructions. No separate extension cable is needed when the supplied length reaches your installation point. Avoid unnecessary extensions to limit additional signal loss.

Magnetic Base for Easy Repositioning
Place the antenna on a suitable, flat steel surface without drilling. The magnetic base makes it convenient to test different locations around your workspace. Keep the antenna outside metal cabinets, and check that the surface provides a secure hold.

Specifications

• Product type: External 4G LTE antenna
• Frequency range: 700–2700MHz
• Listed antenna gain: 5dBi
• Radiation pattern: Omnidirectional
• Polarization: Vertical
• Impedance: 50Ω
• Cable type: RG174 coaxial cable
• Cable length: 3m / approximately 9.84ft
• Cable-end connector: SMA male
• Included adapter: 1 × SMA female to TS9 male
• Antenna leads: 1
• Base type: Magnetic
